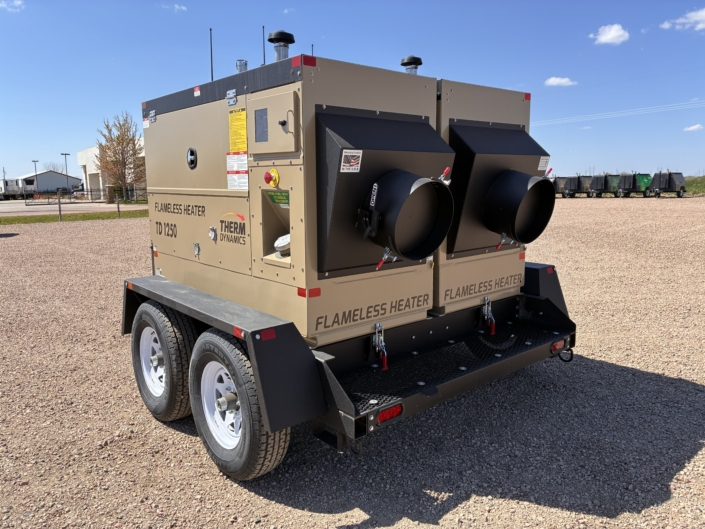

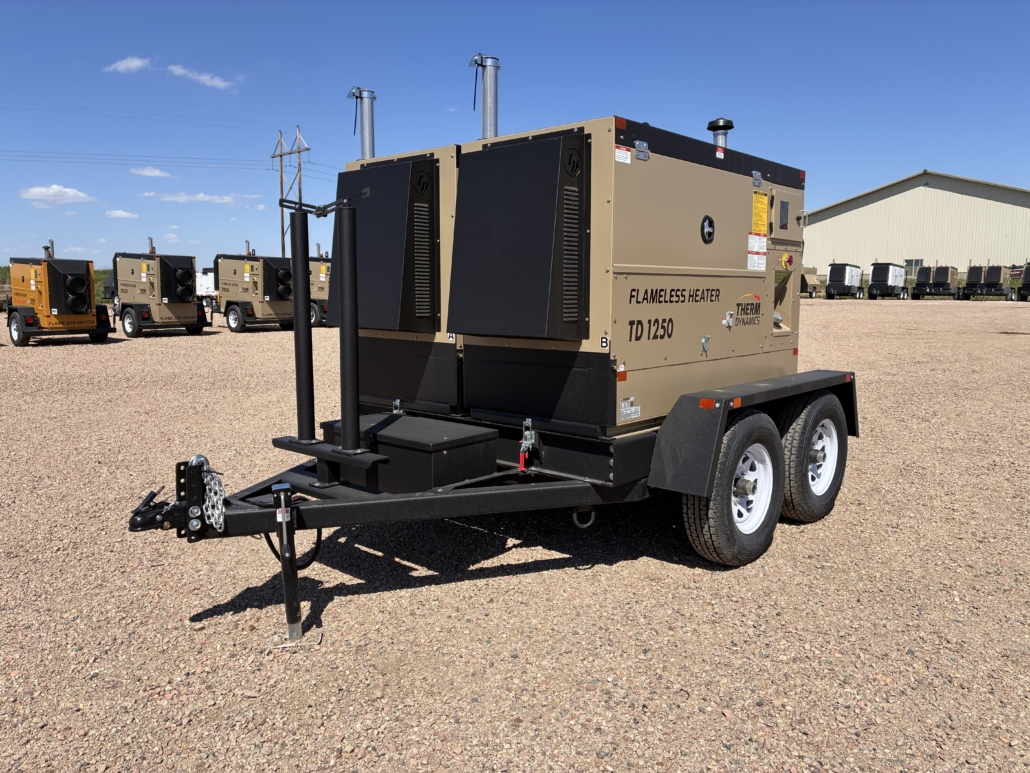

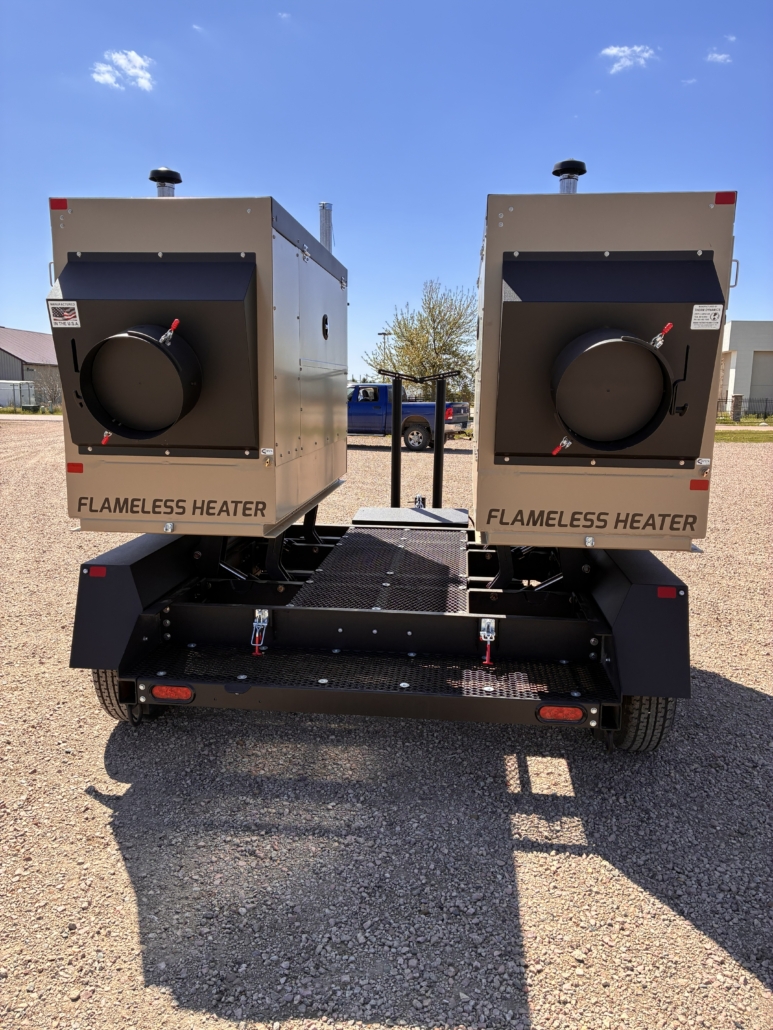

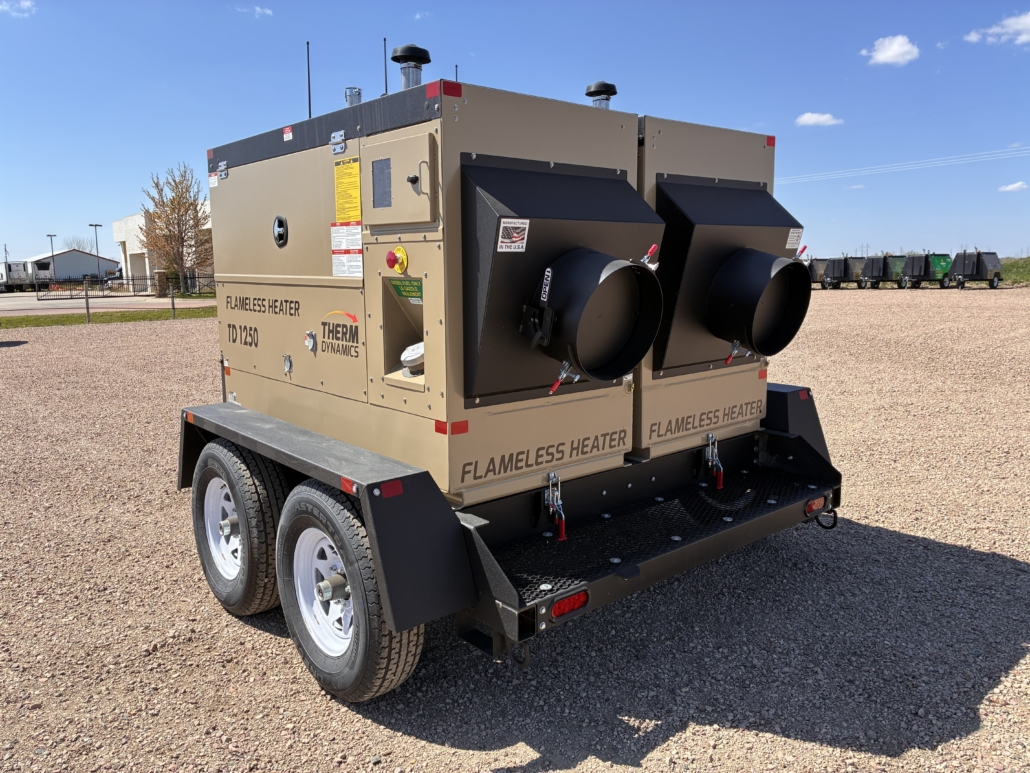

TD1250L

APPLICATION

No Flames. No Fumes. No DEF.

Ideal for applications where an open flame spark risk is
out of the question; the TD1250L (Lift) excels at providing 1.25
Million BTUs of clean, dry heat.

The patented technology uses two diesel powered
engines to agitate hydraulic oil in a flameless, sparkless,
low-pressure environment. In addition, an overspeed
air intake shut-off valve is standard equipment. The oil is
heated and circulated, not burned, providing a clean
pollution-free discharge to the target environment. Safety
features are incorporated to protect the investment of
your Therm Dynamics heater.

All heaters are equipped with a set of four shut-off
switches that terminate the engines when excessive
pressures, speed or water temperatures are detected.

Certified to UL733-2013 & CSA B 140.8.1967(R2015) STANDARDS REPORT NUMBER: #0489HH001S

SPECIFICATIONS

PERFORMANCE

  • Fuel: Diesel #2
  • Max BTU Output: 1,250,000
  • Efficiency: 90%+
  • CFM: 9,000
  • Static Pressure: 7.0″
  • Temperature: 180°F
  • Max Fuel Consumption: 9.8 GPH

POWER PLANT

  • 2-2504D Kohler

DIMENSIONS

  • Weight, empty: 7,400 lbs.
  • Cabinet height: 7’10“
  • Overall length: 14’0”
  • Overall width: 8’4”

FUEL CAPACITY

  • 240 Gallons double containment

FEATURES

  • Remote Thermostat Control
  • Duct Storage
  • Torsion Axle
  • NO DEF
