APPLICATION

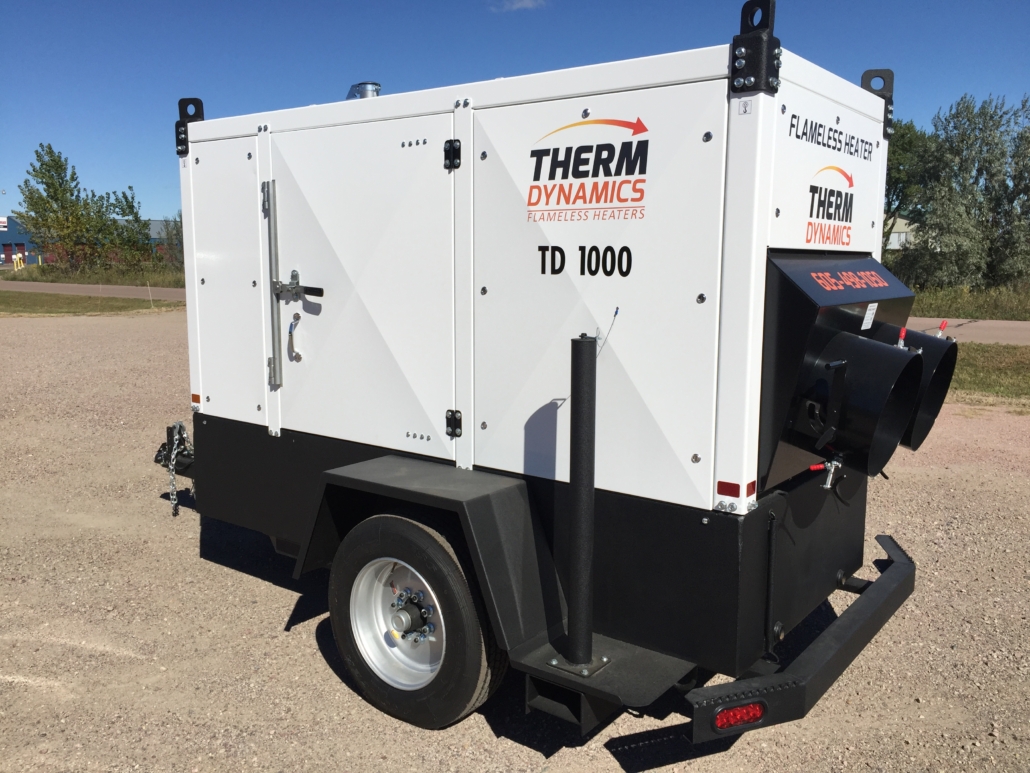

Ideal for applications where an open flame or spark-risk is out of the question; the TD1000 excels at providing 1.0 million BTUs of clean, dry heat.
The patented technology uses a diesel power engine to agitate hydraulic oil in a flameless, low-pressure environment. An overspeed air intake shut-off valve is standard on this equipment. The oil is heated and circulated, not burned, providing a clean pollution free discharge to the target environment. Safety features are incorporated to protect the investment of your Therm Dynamics heater.
All heaters are equipped with a set of four shut-off switches that terminate the engine when excessive pressure, speed or water temperatures are detected.
Certified to UL733-2013 & CSA B 140.8.1967(R2015). Standards Report Number: 489HH001S
SPECIFICATIONS
- Fuel: Diesel #2
- Max BTU Output: 1,000,000
- Efficiency: 90%+
- CFM: 6,200+
- Static Pressure: 7.0”
- Temperature: 180°F
- Max Fuel Consumption: 7.6 GPH
- John Deere 4045 Tier 4F
- Weight, Empty: 6,500 lbs
- Weight, Full: 7,900 lbs
- Height: 8’5”
- Width: 6’7”
- Length: 15’3” overall with inlet and outlet
OUTLET
- 2 – 16″
FUEL CAPACITY
- Fuel Capacity: 200 Gallons
- Double Containment
