APPLICATION
No Flames. No Fumes. No DEF.

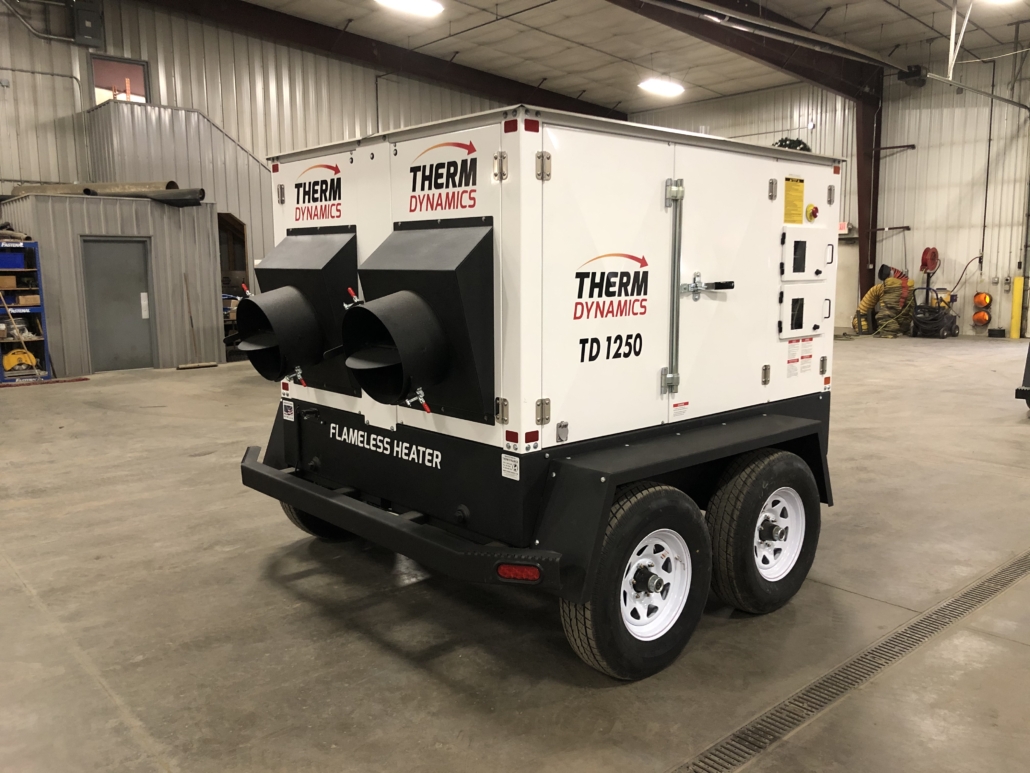

Ideal for applications where an open flame spark risk is out of the question; the TD1250S (Slide) excels at providing 1.25
Million BTUs of clean, dry heat.
The patented technology uses two diesel powered engines to agitate hydraulic oil in a flameless, sparkless, low-pressure environment. In addition, an overspeed air intake shut-off valve is standard equipment. The oil is heated and circulated, not burned, providing a clean pollution-free discharge to the target environment. Safety features are incorporated to protect the investment of your Therm Dynamics heater.
All heaters are equipped with a set of four shut-off switches that terminate the engines when excessive pressures, speed or water temperatures are detected.
Certified to UL733-2013 & CSA B 140.8.1967(R2015) STANDARDS REPORT NUMBER: #0489HH001S
SPECIFICATIONS
PERFORMANCE
- Fuel: Diesel #2
- Max BTU Output: 1,250,000
- Efficiency: 90%+
- CFM: 9,000
- Static Pressure: 7.0″
- Temperature: 180°F
- Max Fuel Consumption: 9.8 GPH
POWER PLANT
- 2-2504D Kohler
DIMENSIONS
- Weight, empty: 7,400 lbs.
- Cabinet height: 7’10“
- Overall length: 14’0”
- Overall width: 8’4”
FUEL CAPACITY
- 240 Gallons double containment
FEATURES
- Remote Site Thermostat Control
- Duct Storage
- Torsion Axle
- NO DEF
